Description

Product Introduction

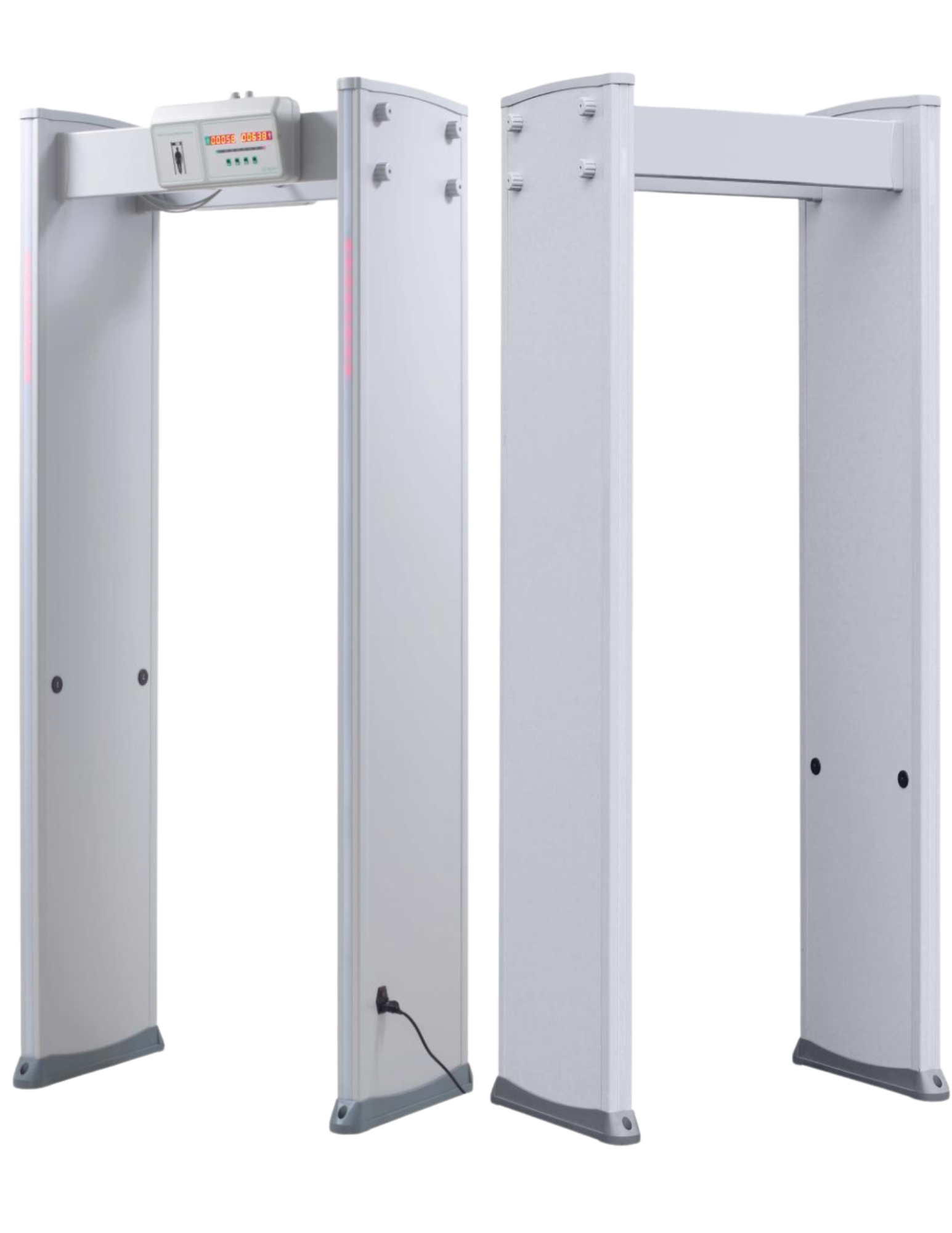

SE1806NE door frame metal detector gate adopts Full Aluminum Frame and Highly Integrated Dual High-

Brightness LED Host to check whether there is any metal items been hided in the body, such as metals, guns,

controlled knives and so on. The max sensitivity reach up to 255 level, with remote control and simple software

interface, much more easier for installation and maintenance.

General Specification

Sensitivity level: 255

Power consumption: 12 W

Working frequency :1~50 bands

Highest standard: Metal size ≥ 6 g

Vertical dimension: 2200x860x440mm

Vertical channel size: 2000x700mm

Customizable width : 700~1500mm

Working voltage: AC110V~240V 50/60Hz

Working environment temperature: -40℃~+85℃

Advanced Features

6.12.18. independent zones available to choose, Dual High-Brightness Red LED Display

Adjustable sensitivity of each detection zone, multi-alarm sounds to choose

Operating frequency can be adjusted manually or automatically

Detection technology: Even detection technology, no blind spot

Internet technology:Remote upgrade system and remote control system

Statistics: Record the pass and alarm numbers

Query function: The system has real-time information query function

Intelligent Standby: The system has intelligent standby operation alerts

Detection speed: more than 60 people pass and detect in 1 minute

Intelligent partion: Can change detection zones according customers’ demands

Can connect PC terminal that change specification of WTMD anytime,anywhere(optional)

Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON

We integrated 72 application occasions in the program, can change all zones,sensitivity when you choose different

occasion

No harm to human body with heart peacemaker, pregnant women, magnetic floppy and recording tapes

Compliance

CE compliance

ISO9001 Quality Management System

ISO14001 Environment Management System

OHSAS18001 Occupational Health Management System

Applications

Airport, port, travelling check point

Conference, stadium, access control, court, visiting check point

power plant, factory, hotel, restaurant, entertainment, power venue, KTV, temple

Installation Sites

Fashion music festival in Shenzhen China

Metro in Wuhan China

Police office in India

Embassy in Indonesia
